TOPDON ONE Moto Motorcycle, ATV/UTV & Marine Diagnostic Scan Tool (TDONEMOTO)

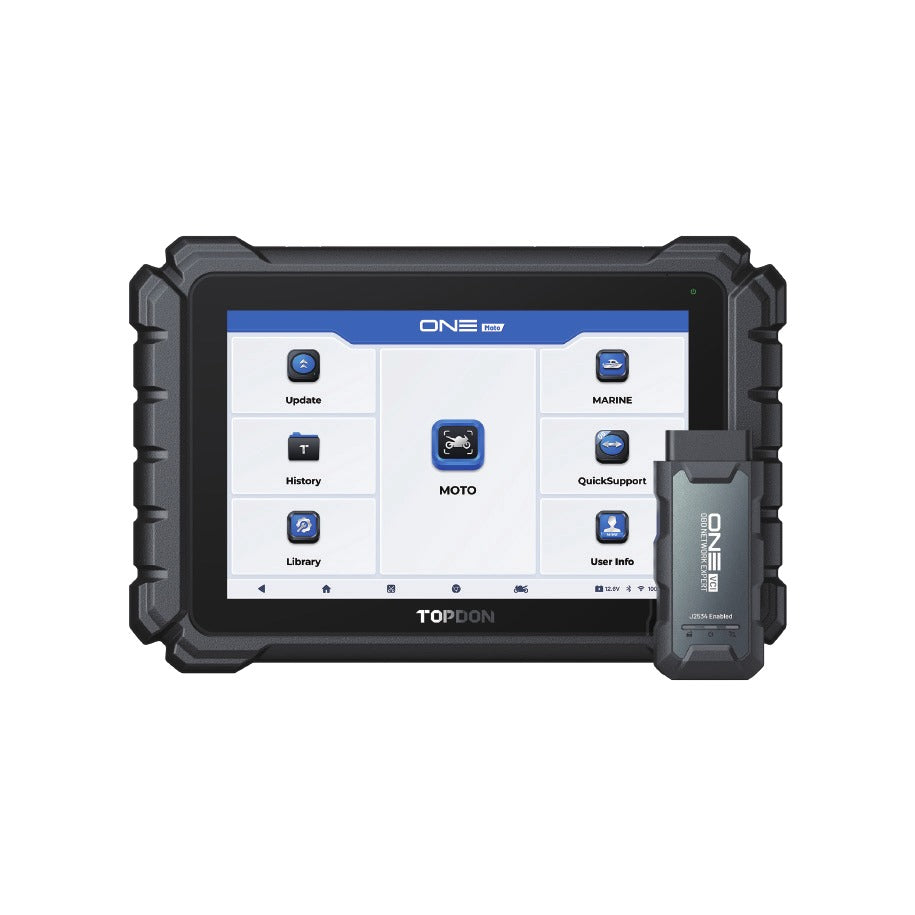

The TOPDON ONE Moto is a professional 10.1-inch diagnostic scan tool for motorcycles, ATVs, UTVs, and marine vehicles. It gives powersports and marine technicians OE-level diagnostics for more than 100 motorcycle brands, plus marine coverage for 9 brands including Honda, Yamaha, Kawasaki, and BRP, all on one rugged Android tablet with a wireless ONE VCI. From routine oil resets to bi-directional tests and module flashing, ONE Moto is built for shops that service everything from dirt bikes to personal watercraft.

Why the ONE Moto Makes Sense

Most automotive scan tools stop at cars and light trucks. Powersports and marine work usually means a stack of single-brand tools, loose adapters, and guesswork about where the diagnostic port is. The ONE Moto puts motorcycle, ATV, UTV, and marine diagnostics on one platform with a complete 36-piece connector kit and built-in port-finding guidance, so technicians spend less time setting up and more time fixing.

For dealers, independent powersports shops, and marine service centers, that makes the ONE Moto a practical single-tool replacement for a drawer full of brand-specific scanners.

Key Features and Benefits

• Motorcycle Diagnostics for 100+ Brands
  OE-level functions, live data, maintenance resets, and diagnostics for engine, ABS, immobilizer, and instrument cluster systems.
• Marine Diagnostics for 9 Brands
  Extend service beyond the road and trail with marine coverage including Honda, Yamaha, Kawasaki, and BRP.
• Bi-Directional Testing
  Command components, run functional tests, and confirm system responses to cut troubleshooting time.
• Service Functions Beyond Code Reading
  Oil reset, throttle matching, clutch matching, and module flashing for both routine maintenance and advanced workshop jobs.
• Complete 36-Piece Connector Kit
  Dedicated adapters for Harley-Davidson, BMW, Ducati, KTM, Polaris, BRP, Honda, Yamaha, Kawasaki, Suzuki, Royal Enfield, Aprilia, Vespa, and more, packed in two carrying cases.
• Built-In DLC Port Finder
  On-screen guidance shows where the diagnostic connector is, which helps most on unfamiliar models.
• Wireless ONE VCI
  Bluetooth 5.0 connection up to 33 ft, so technicians can move around the bike, ATV, or boat while testing.
• Rugged 10.1-Inch Tablet
  8-core processor, 4 GB RAM, 128 GB storage, and a 10,000 mAh battery, built for garage and dockside environments.
• 2 Years of Free Updates
  New vehicle coverage, new functions, and performance improvements at no extra cost.

Who Should Buy the ONE Moto

• Powersports Dealers and Repair Shops
  For shops servicing motorcycles, ATVs, UTVs, and side-by-sides across many brands.
• Marine Service Centers
  For technicians working on outboards and personal watercraft from supported marine brands.
• Multi-Brand Independent Shops
  For general repair shops adding powersports or marine work without buying separate dealer tools.
• Mobile and Dockside Technicians
  For techs who need a portable, wireless, battery-powered scan tool on the go.

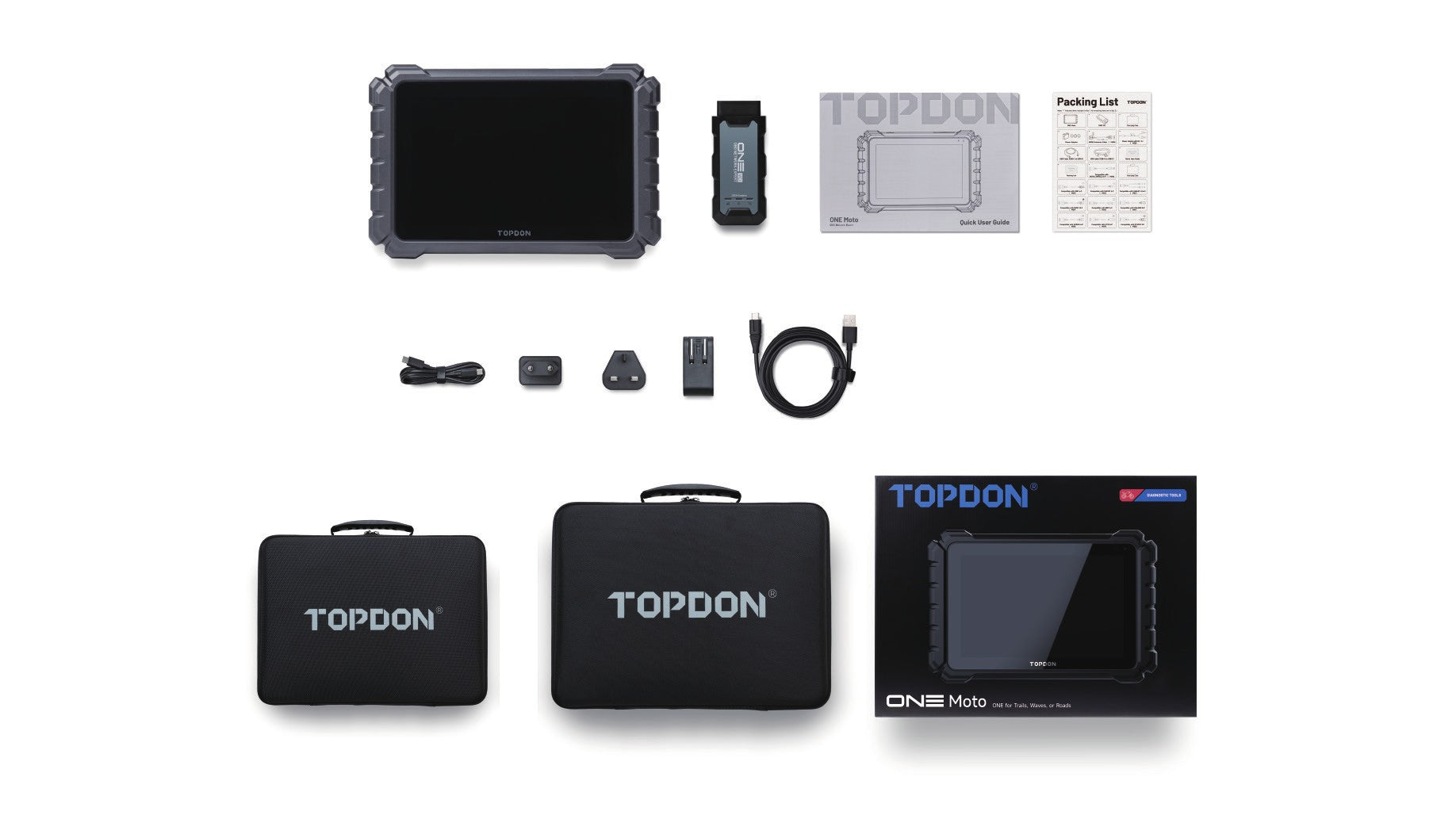

What's in the Box

• ONE Moto 10.1-inch diagnostic tablet
• ONE VCI (vehicle communication interface)
• Power adapter
• USB-C to USB-C cable and USB-A to USB-C cable
• Diagnostic connector kit (36 pieces), including universal breakout leads, power clamps, and an OBDII extension cable
• 2 carrying cases
• Quick user guide and packing list

Technical Details

• Brand: TOPDON
• Model: ONE Moto (SKU TDONEMOTO)
• Category: Motorcycle, ATV/UTV, and marine diagnostic scan tool
• Coverage: 100+ motorcycle brands; 9 marine brands
• Processor: 8-core, 2.0 GHz
• Operating System: Android 12 (closed system)
• Memory: 4 GB RAM + 128 GB storage
• Display: 10.1-inch LCD, 1280 x 800
• Battery: 10,000 mAh (3.8 V)
• Camera: 16 MP autofocus rear camera
• Connectivity: Bluetooth 5.0, Wi-Fi
• Ports: USB-A (host), USB-C (host/device)
• Tablet Dimensions: 12.24 x 8.15 x 1.54 in. (311 x 207 x 39 mm)
• Tablet Weight: 3.47 lb (1,574 g)
• VCI: Bluetooth 5.0 (up to 33 ft / 10 m); Wi-Fi 802.11 b/g/n 2.4 GHz, AP mode, up to 300 Mbps; 4.52 x 2.00 x 1.14 in.; 3.39 oz
• Operating Temperature: 14°F to 122°F (–10°C to 50°C)
• Storage Temperature: –4°F to 158°F (–20°C to 70°C)
• Languages: 45, including English, Spanish, and French
• Software Updates: 2 years included

Frequently Asked Questions

What vehicles does the TOPDON ONE Moto cover?

It covers more than 100 motorcycle brands, along with ATVs and UTVs, plus marine diagnostics for 9 brands including Honda, Yamaha, Kawasaki, and BRP.

Does the ONE Moto work on Harley-Davidson, BMW, and Ducati motorcycles?

Yes. The included connector kit has dedicated adapters for Harley-Davidson (4-pin and 6-pin), BMW (10-pin), and Ducati (4-pin), along with many other brands.

Can it do more than read and clear codes?

Yes. It supports live data, bi-directional tests, oil resets, throttle matching, clutch matching, and module flashing on supported vehicles.

Does it work on boats and personal watercraft?

Yes. Marine diagnostics are supported for 9 brands, including Honda, Yamaha, Kawasaki, and BRP.

How long are software updates included?

Two years of free updates are included, covering new vehicles, new functions, and performance improvements.
