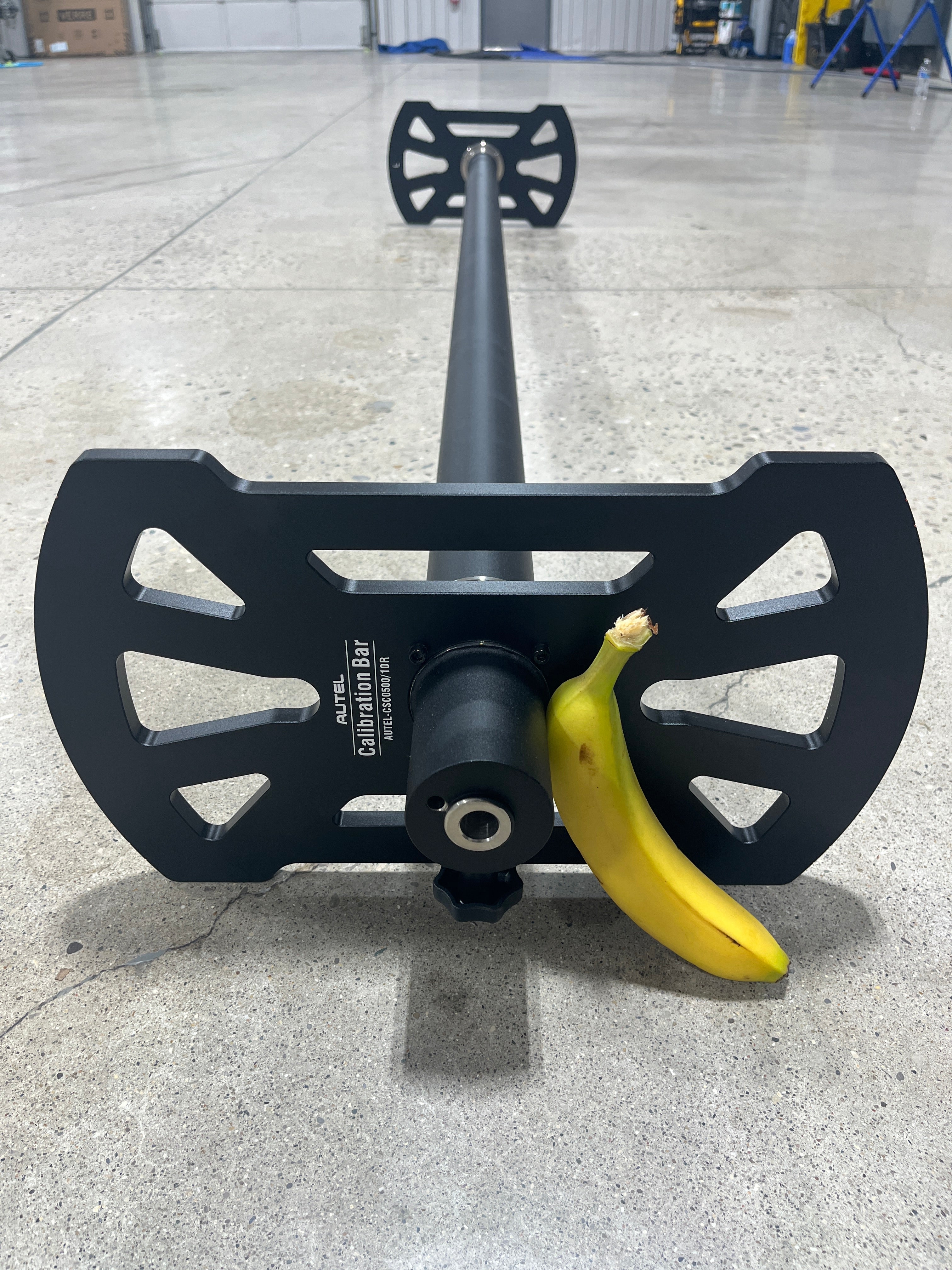

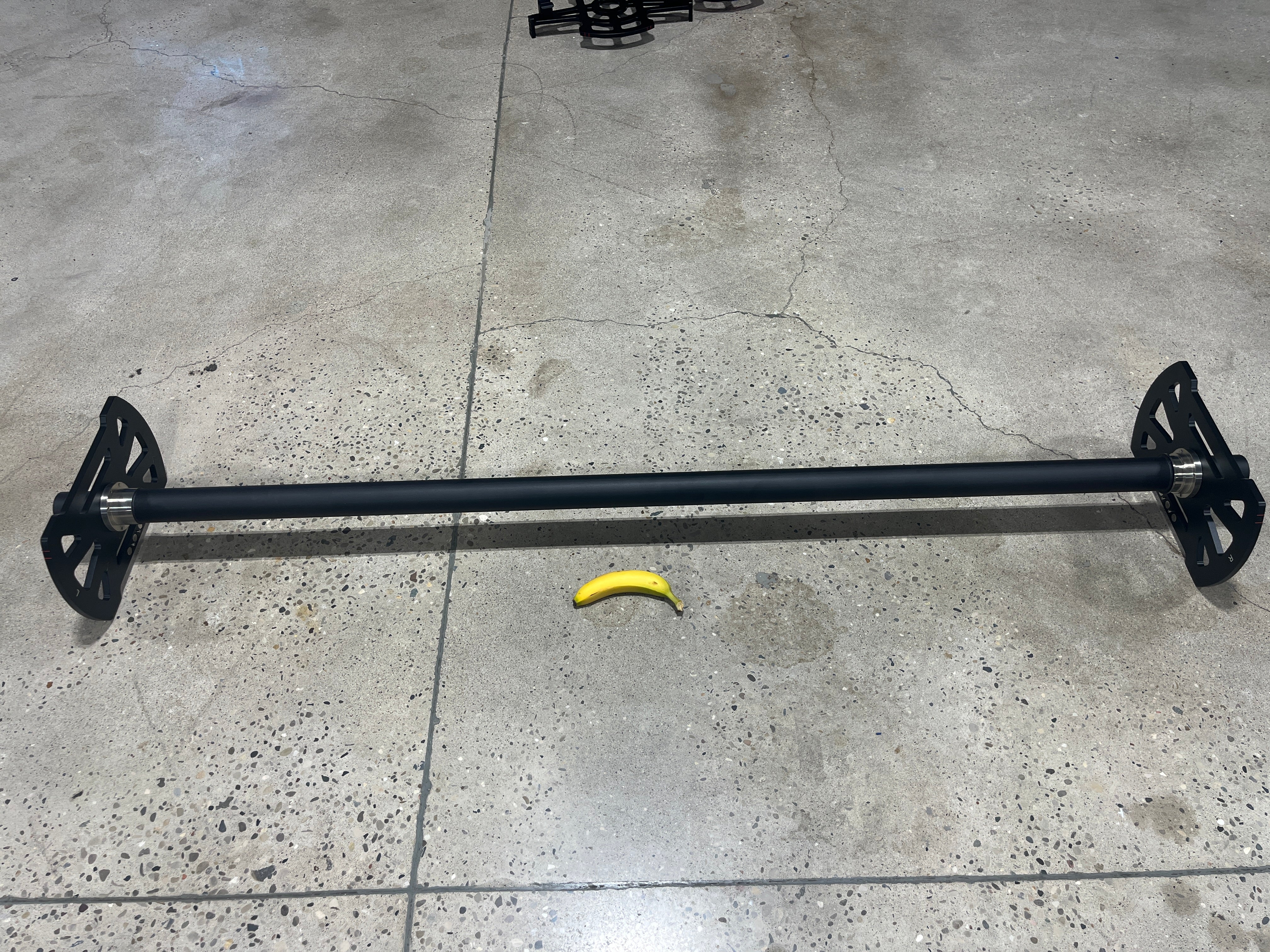

Calibration Bar for Camera Based Systems CSC0500-10 **requires CSC0500-12 end mounts
Couldn't load pickup availability
- Description
- Shipping and Refund
- Reviews

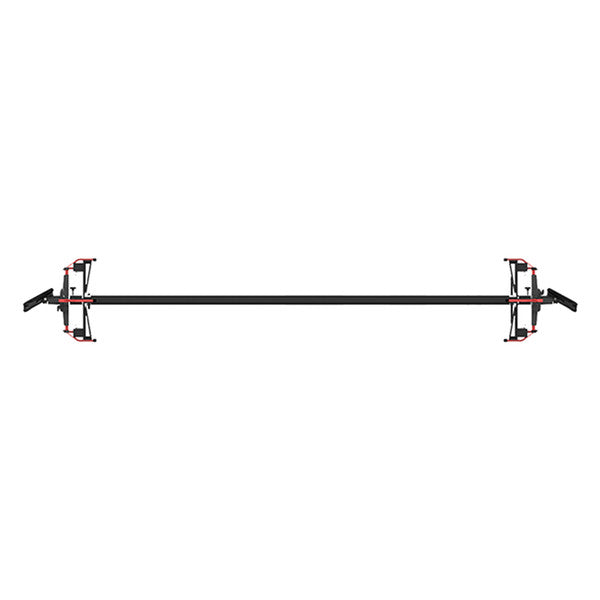

The Autel CSC0500-10 Calibration Bar is the essential, cross-beam optical positioning bar designed specifically for the Autel MaxiSYS IA800 Intelligent ADAS Calibration System.
Equipped with precision end targets and mounting interfaces for high-resolution 3D positioning cameras, the CSC0500-10 serves as the critical reference axis for aligning the IA800 frame to the vehicle's thrust line. (Note: Requires end mounts (CSC0500-12) for complete assembly). If your calibration bar suffers frame warping, joint slop, or camera mount damage from a bay drop or rack collision, replacing this main structural component restores original OEM alignment tolerances and eliminates optical measurement errors.
Key Features
- High-Precision Optical Reference: Provides a rigid, ultra-level platform for 3D positioning cameras to accurately calculate distance, centerline, and frame height relative to wheel targets.
- Seamless IA800 Integration: Designed for direct mounting onto the Autel IA800 optical frame elevator and crossbar assembly (requires CSC0500-12 end mounts).
- Heavy-Duty Construction: Built from lightweight yet rigid extruded aluminum to prevent flexing and maintain true target geometry during repeated positioning adjustments.
- Plug-and-Play Setup: Integrates natively with MaxiSYS ADAS alignment software for guided, step-by-step target distance verification.
